QMC15
QMC15
QMC15

QMC15

5 stars product

15,4-4,2 kW

Double independent channeling

A+Energy efficiency class
Ecodesign 2022

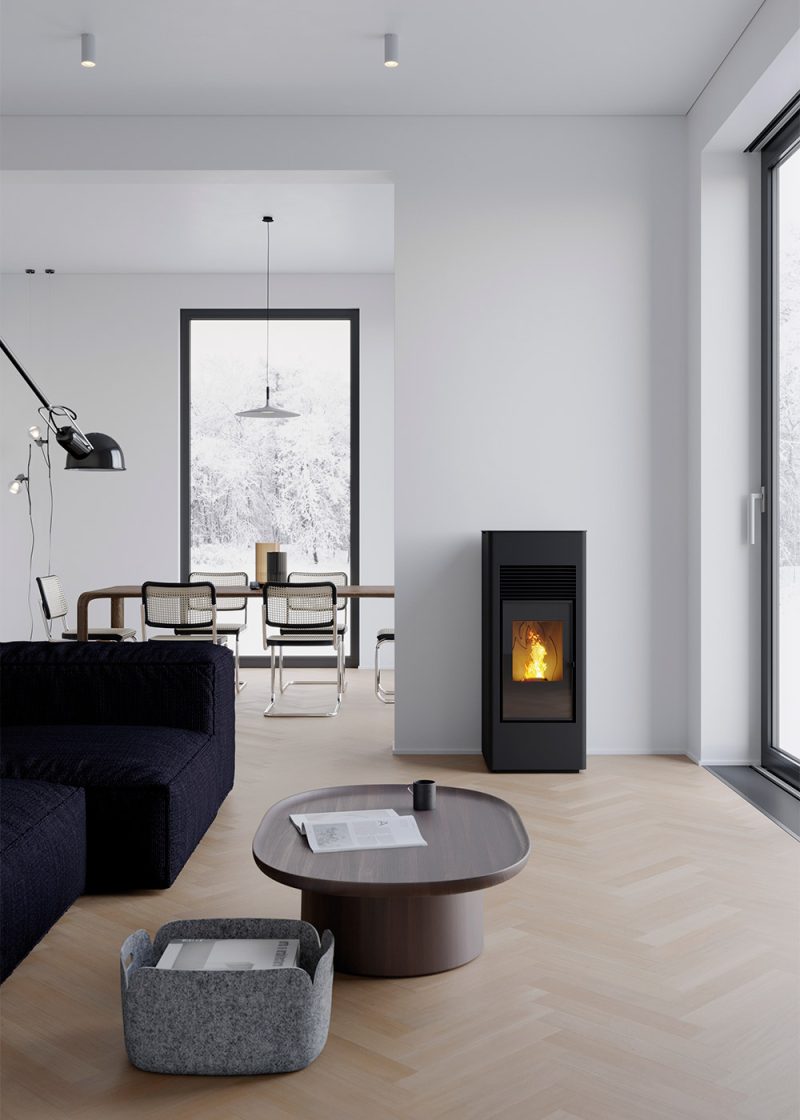

Pellet stove with essential lines and minimal design.

The discreet and well-proportioned front grille immediately transmits solidity, strength and functionality.

Suitable for heating large surfaces in a short time, it is designed for a double independent canalisation.

  • Double independent channeling
  • Ash drawer
  • Cast iron stove
  • Forced ventilation
  • Radio control
  • WIFI module for remote control
SKU: QMC15 Category:
  • Total heat output:max 15,4 - min 4,2 kW
  • Nominal heat output:max 14,0 - min 4,0 kW
  • Efficiency:Pmax 88,4% - Pmin 95,0%
  • CO emission at 13% O2 (%):Pmax 0,014% - Pmin 0,023%
  • Pellet consumption:max 3,4 kg/h - max 0,9 kg/h
  • Reservoir capacity:16,5 kg
  • Heatable room volume:240-320 mc
  • Minimum distances from flammable walls:side: 30 cm - rear: 20 cm - front: 100 cm
  • Voltage / Frequency:230V - 50Hz
  • Rated input power:340 W
  • Weight:110 kg
  • Complies with:EN14785 - LRV/VKF - BImSchV II - 15a B-VG
  • Flue:rear
Technical Drawing

A = Ø 80 mm Flue
B = Ø 50 mm Combustion air
1-2 = Ø 80 mm Ducted air
