RVC10
RVC10
RVC10

RVC10

5 stars product

11,0-4,3 kW

Independent channeling

A+Energy efficiency class
Ecodesign 2022

Pellet stove with a refined design, with rigorous geometries of great visual impact.

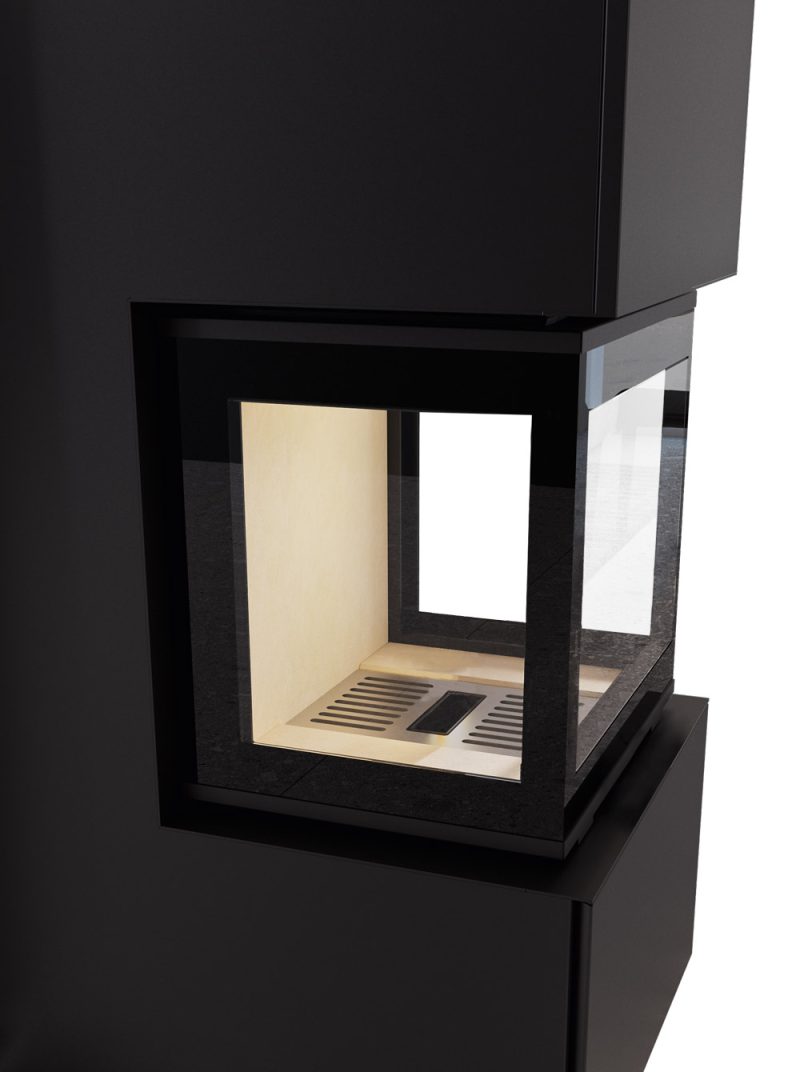

It is characterised by the presence of a large vermiculite f irebox visible f rom 3 sides through generous surfaces in black silk-screened glass that put the flame at the centre of attention.

  • Independent channeling
  • Vermiculite chamber
  • Automatic cleaning of the brazier
  • Glass cleaning
  • Ash drawer on separate compartment
  • Forced ventilation
  • Radio control
  • WIFI module for remote control
SKU: RVC10 Category:
  • Total heat output:max 11,0 - min 4,3 kW
  • Nominal heat output:max 10,0 - min 4,0 kW
  • Efficiency:Pmax 90,5% - Pmin 95,5%
  • CO emission at 13% O2 (%):Pmax 0,014% - Pmin 0,017%
  • Pellet consumption:max 2,4 kg/h - max 0,9 kg/h
  • Reservoir capacity:25 kg
  • Heatable room volume:160-220 mc
  • Minimum distances from flammable walls:lato: 50 cm - retro: 10 cm - fronte: 100 cm
  • Voltage / Frequency:230V - 50Hz
  • Rated input power:360 W
  • Weight:217 kg
  • Complies with:EN14785 - LRV/VKF - BImSchV II
  • Flue:upper - rear
Technical Drawing

A = Ø 80 mm Flue
B = Ø 51 mm Combustion air
C = Ø 80 mm Top Flue outlet
D = Ø 80 mm Ducted air
