5 stars product

11,1-3,8 kW

Natural convection or Forced ventilation

A+Energy efficiency class
Ecodesign 2022

Cylindrical pellet stove with calendered steel coating.

Proposed in full black, red and corten versions in satin and glossy declinations, it looks like a design object with a contemporary mood, a decoration.

  • Natural convection
  • Glass cleaning
  • Sealed stove
  • Cast iron stove
  • Cast iron brazier
  • Double door
  • Forced ventilation
  • Possibility to exclude the ventilation at powers 1-2-3
  • Radio control
  • WIFI module for remote control
SKU: TV11 Category:
  • Total heat output:max 11,1 - min 3,8 kW
  • Nominal heat output:max 10,0 - min 3,6 kW
  • Efficiency:Pmax 90,0% - Pmin 94,5%
  • CO emission at 13% O2 (%):Pmax 0,017% - Pmin 0,014%
  • Pellet consumption:max 2,4 kg/h - max 0,8 kg/h
  • Reservoir capacity:19 kg
  • Heatable room volume:170-260 mc
  • Minimum distances from flammable walls:side: 25 cm - rear: 20 cm - front: 100 cm
  • Voltage / Frequency:230V - 50Hz
  • Rated input power:350 W
  • Weight:98 kg
  • Complies with:EN14785 - LRV/VKF - BImSchV II
  • Flue:rear

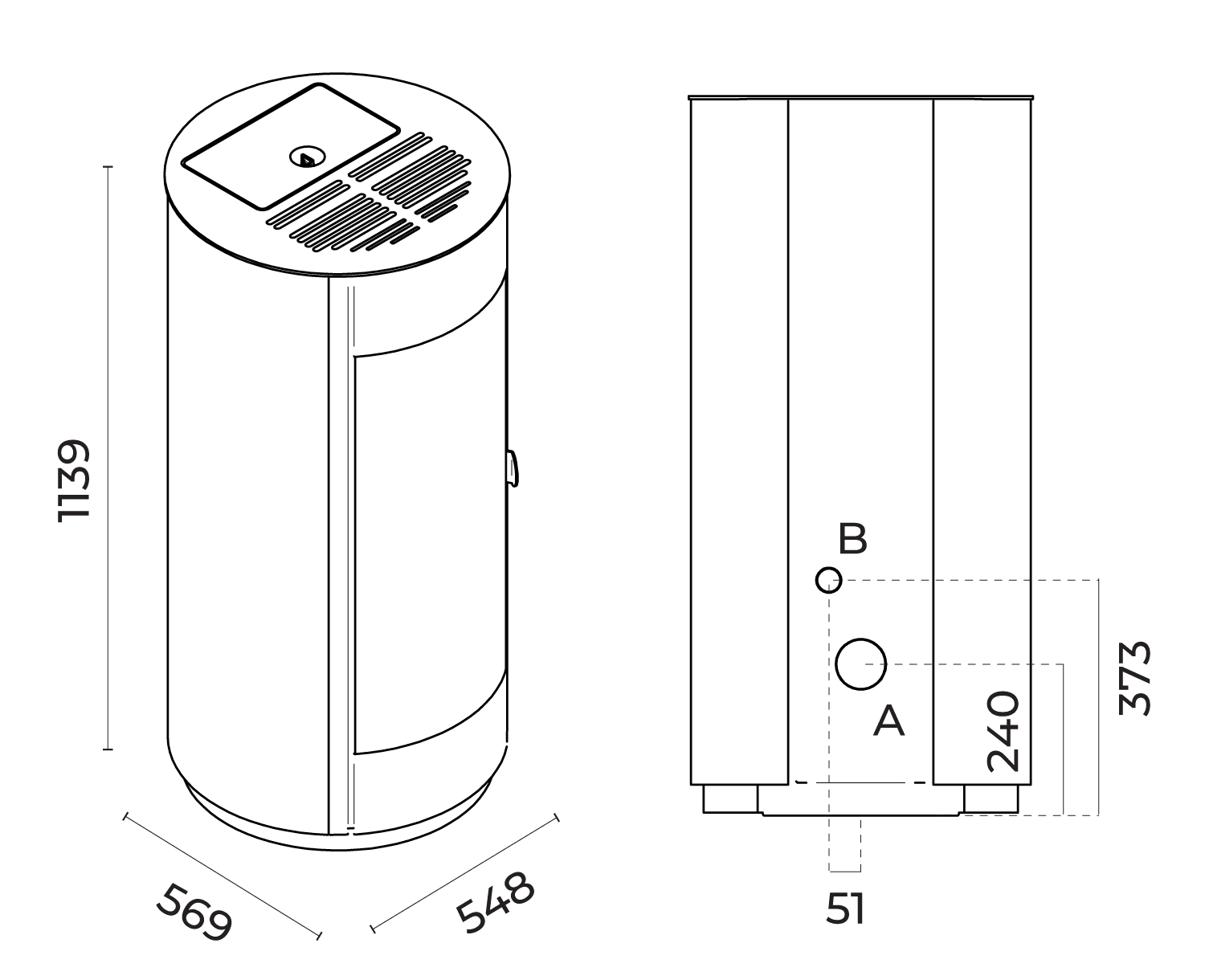

Technical Drawing

A = Ø 80 mm Flue
B = Ø 40 mm Combustion air

The data and features indicated are in no way binding to Eva Stampaggi S.r.l. The company reserves the right to make any changes necessary without prior notice or replacement.
All rights reserved. Total or partial reproduction prohibited without the express authorization of Eva Stampaggi S.r.l.
